Suitable for: Dadant honey super, Dadant leaf honey super, DNM shallow / EHM shallow, Langstroth honey super etc. Maximum frame size: 16.5 x 48 cm (height up to 16.5 cm, top bar length up to 48 cm).

Pocket size: 17.5 x 44 x 4.5 cm
Drive: Motor 110 W / 230 V with fully automatic control
Inner diameter of the tank: 63 cm

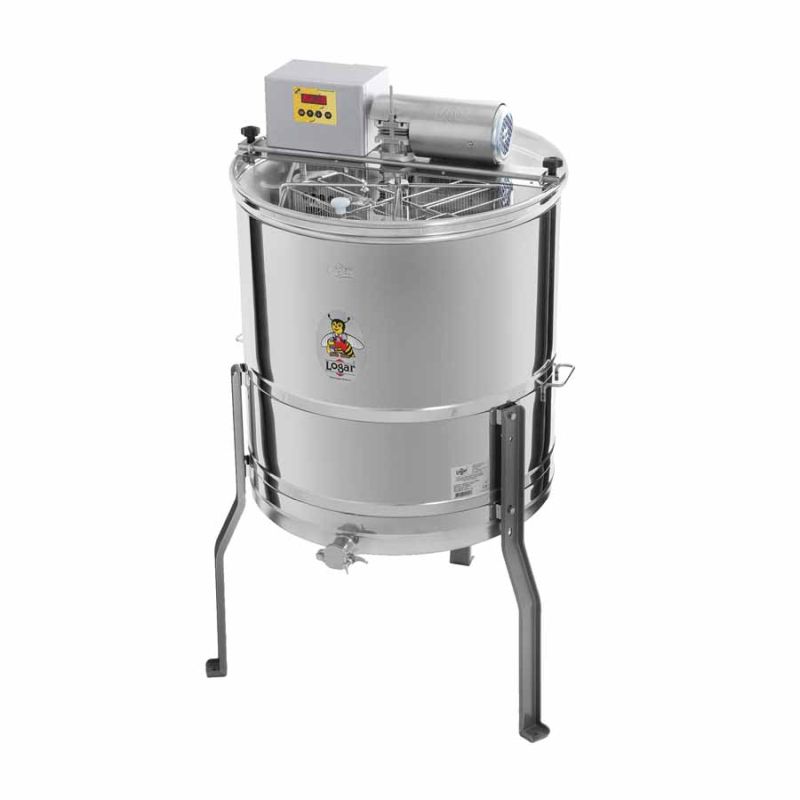

Innovative self-turning honey extractor with double pockets – designed to efficiently extract many shallow frames on a small tank diameter. The 8-frame self-turning extractor with motor drive (110 W / 230 V) features fully automatic controls and a safety switch that immediately stops the motor when the lid is opened. The double-sided frame pockets are separated by a sheet that channels the honey away. State-of-the-art engineering and a seamlessly welded tank bottom, inclined toward the outlet, allow complete honey drainage. The stainless squeeze valve is welded at the lowest possible point so all honey can be removed. All parts that contact honey are made from food-grade materials. The lid is made of transparent acrylic, and specially designed feet ensure stable support.

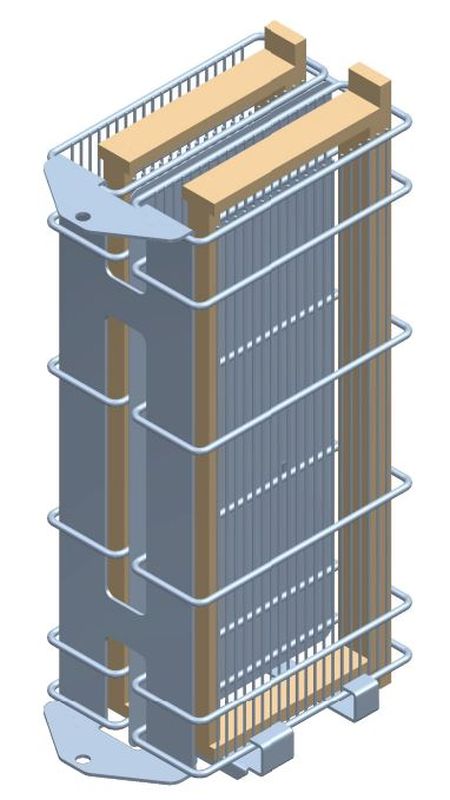

The frame pockets are made from vertical grid bars of appropriate density so frames are not damaged during spinning. Connected by a special mechanism, the pockets prevent honey pooling so frames remain dry after extraction.

The fully automatic controller allows the entire extraction process to run autonomously so you can attend to other tasks. Operation is via a membrane keypad. Up to 8 different programs can be set and saved; each program can be configured with up to 8 segments of time, direction and speed. Basic programs are preinstalled and can be adjusted at any time.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:

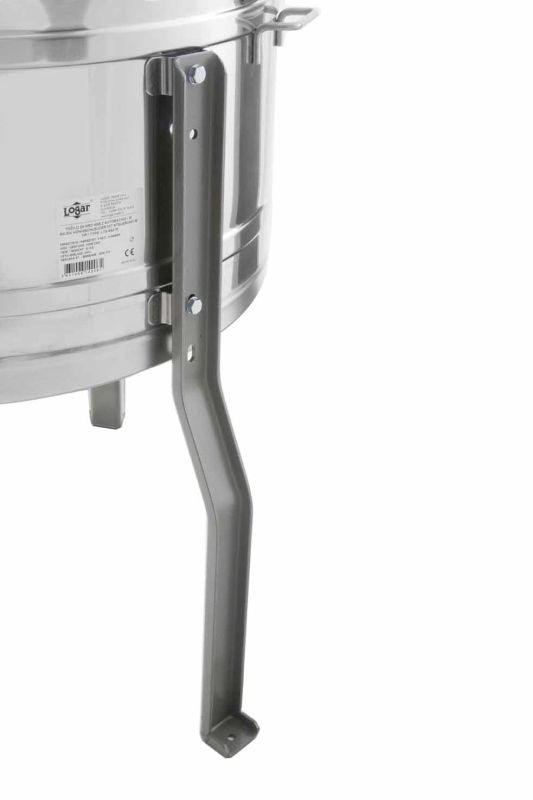

Fitting rubber pads (Art. 7754) to the feet reduces slipping of the extractor.
If 230 V is not available, the inverter 12V DC→230V AC, 600W (Art. 4627) allows operation from a 12 V battery.
Spare tangential basket with additional center axle for extracting large frames up to 30 cm high.

• Type: LTA 8SSD
• Drive: Fully automatic program control with motor 110 W / 230 V (fully automatic controller and safety switch)
• Number of frames (deep / shallow): 0 / 8
• Cassette (pocket) size: 17.5 x 44 x 4.5 cm
• Maximum frame: 16.5 x 48 cm
• Tank diameter (inside / outside): 63 / 66 cm (inner diameter of tank: 63 cm)
• Heights: Total height with feet / with drive: 111 / 126 cm; Tank height without / with drive: 70 / 85 cm; Height from floor to honey valve: 40 cm
• Honey valve: 1x Ø 38 mm, welded at the lowest possible point
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Extractor type: Self-turning (self-reversing) extractor
• Features: Double-sided frame pockets, seamless welded floor angled toward the honey valve, transparent acrylic lid, compact and quiet design
• Made in: EU (Slovenia)
