Suitable for: Langstroth 1/1, Langstroth honey super, DNM/EHM (including shallow), Zander (including shallow) as well as up to 8 frames (combs) up to 11 cm high. Maximum frame size: 23 x 48 cm.
Cassette dimensions: 24 x 40 x 4.5 cm
Drive: Motor 110 W / 230 V with fully automatic control
Inner diameter of the drum: 63 cm

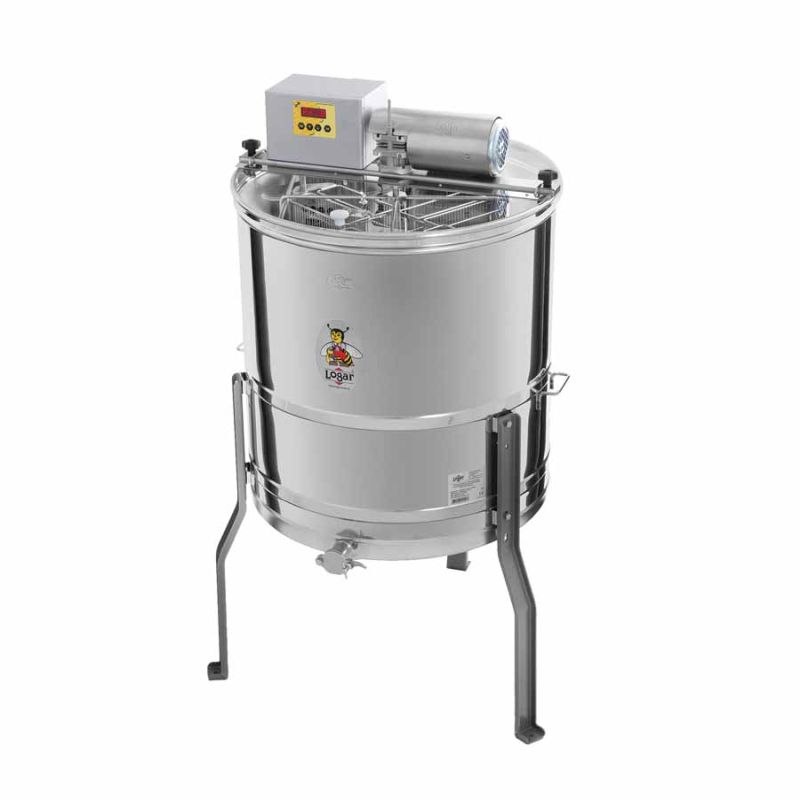

4-frame self-turning honey extractor with 110 W / 230 V motor drive, fully automatic control and safety switch that automatically stops the motor when the lid is opened. State-of-the-art engineering enabled an innovative design of the extractor bottom. The bottom of the drum is seamless-welded and inclined towards the outlet. The stainless pinch valve is welded at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic glass. A special construction of the legs provides the extractor with stable standing security.
The frame pockets are made from vertical grid bars with a suitable spacing to prevent damage to the frames during extraction. They are linked together by a special mechanism. The frame pockets prevent honey from accumulating inside them during spinning, so the frames are dry after extraction.
Allows extraction of 4 frames up to a height of 23 cm and a top bar length of 48 cm.
The fully automatic control lets the entire extraction process run independently, so you can attend to other tasks while it operates. Operation is simple via a foil keypad. You can set and store up to 8 different programs. Each program can be configured with 8 different times, directions and speeds. Basic extraction programs are preinstalled but can be changed, supplemented and saved at any time.
Compact design, quiet operation and reliable performance.
Warranty: 2 years
Optional accessories:
• Fitting rubber pads (
Item No. 7754) to the extractor feet reduces slipping.
• Bottom heater for extractor Ø 63 cm including installation – our recommendation for faster draining of honey from the extractor, quicker straining and easier cleaning,
Item No. 7127.
• If 230 V is not available, the voltage inverter 12 V DC → 230 V AC, 600 W (
Item No. 4627) allows operation of the extractor from a 12 V battery/accumulator.
•
Item No. P495.009, brackets for smaller frames (e.g., DNM/EHM size).
Technical data:
- Drive: fully programmable automatic control with 110 W / 230 V motor, fully automatic control and safety switch (motor stops when lid is opened).
- Number of frames: 4 (standard) / 4 (shallow).

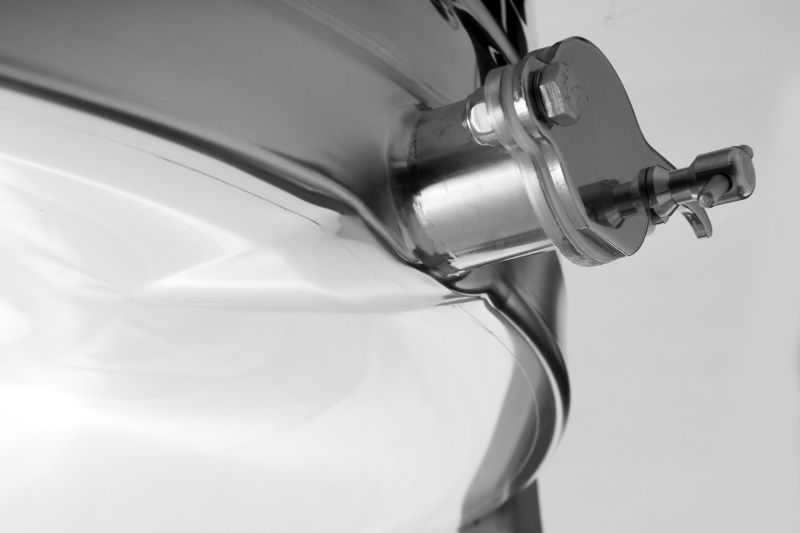

- Bottom: seamless-welded and inclined toward the outlet; honey valve welded at the lowest possible point (1x Ø 38 mm).
- Maximum frame size: 23 x 48 cm.
- Suitable for: Langstroth 1/1, Langstroth honey super, DNM / EHM (including shallow), Zander (including shallow) and up to 8 combs up to 11 cm high.
- Cassette dimensions: 24 x 40 x 4.5 cm.
- Drum diameter (inside/outside): 63 / 66 cm.
- Drum height without/with drive: 70 / 85 cm; overall height with feet / with drive: 111 / 126 cm.

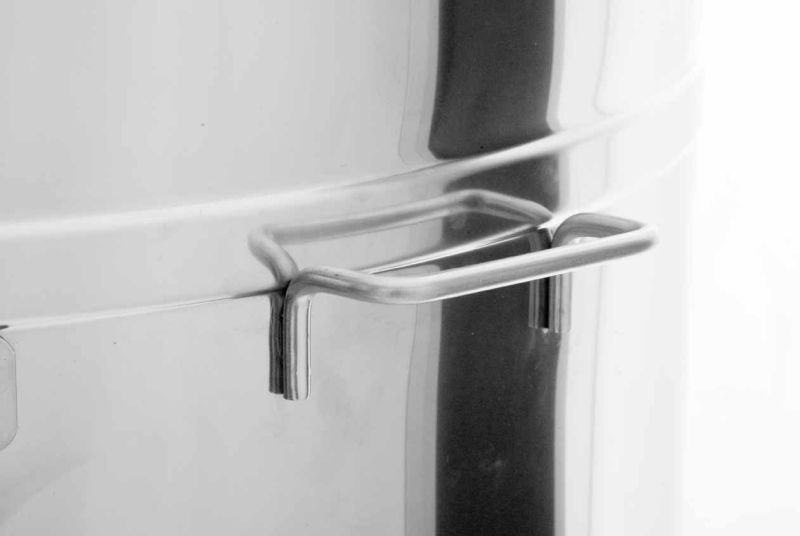

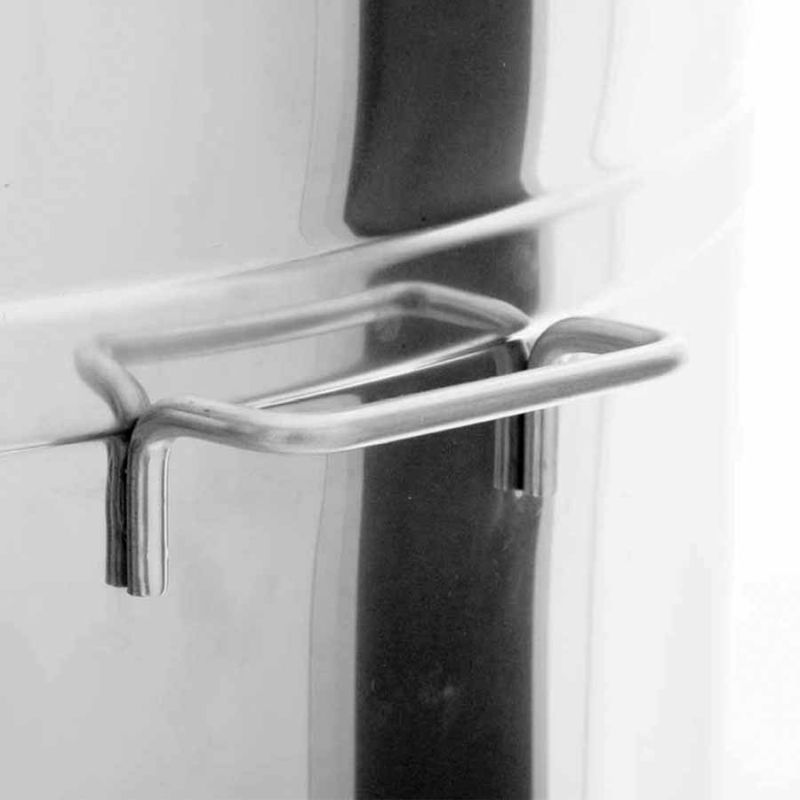

- Handles: two side handles.
- Extractor type: self-turning extractor.
- Warranty: 2 years.
- Made in: EU (Slovenia).
- Type: LTA 4SS M.
- Material: Stainless steel W.Nr. 1.4301 / AISI 304.
