Suitable for: Langstroth 1/1, DNM/EHM (including shallow), Langstroth honey super, Zander (including shallow) as well as up to 12 combs up to 11 cm high. Maximum frame size: 23 x 48 cm.

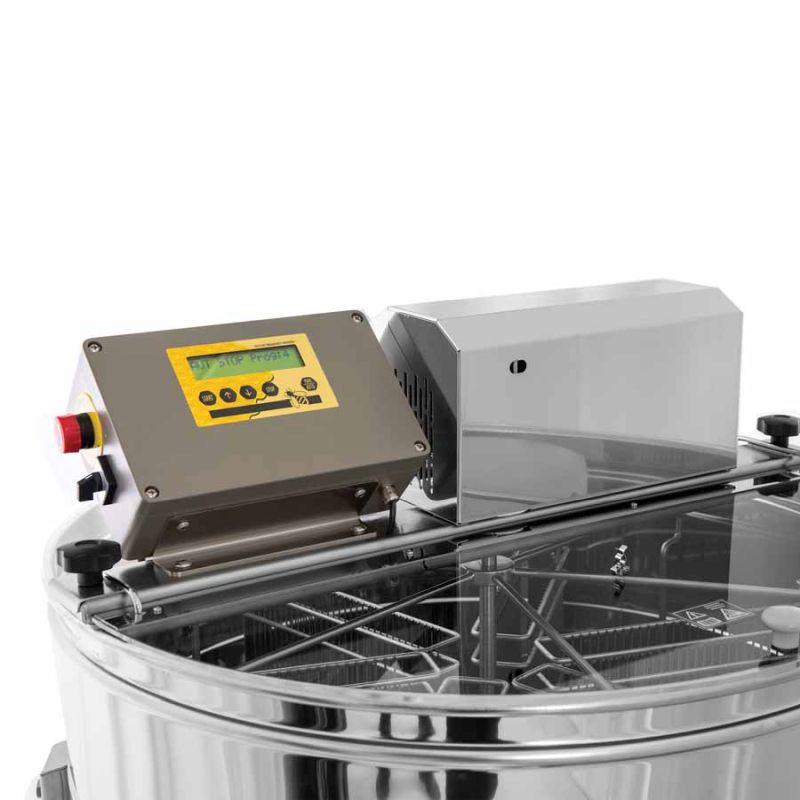

6-frame self-reversing honey extractor by Logar with fully electronic program control. The extractor is driven by a powerful motor 180 W / 230 V and a fully automatic controller with membrane keypad and a two-line digital LCD display. You can set and store up to 8 different programs; each program can be configured with up to 8 time intervals, directions and rotation speeds. The controller manages the entire extraction process automatically so you can attend to other tasks while it runs.

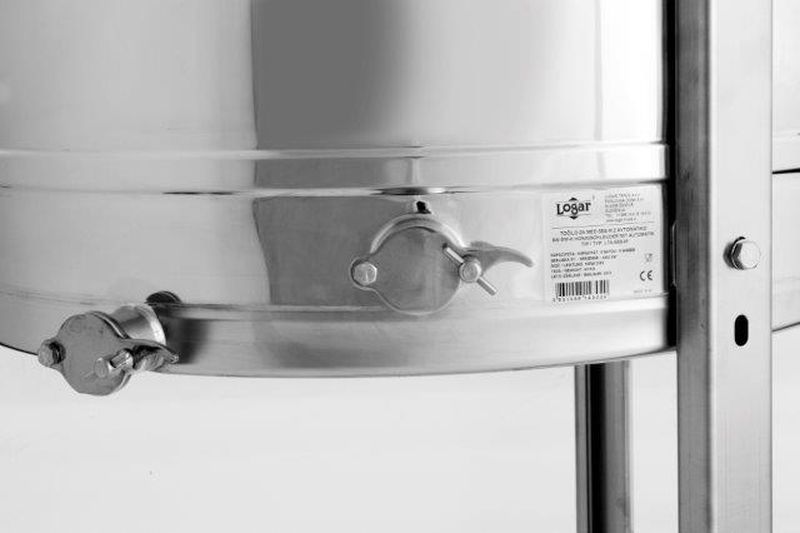

The tank bottom is seamless-welded and sloped toward the outlet. The innovative bottom design, combined with two stainless pinch valves (Ø 38 mm and Ø 42 mm), one welded at the lowest possible point, ensures complete and clean draining of the honey. All parts in contact with honey are made from food-grade materials. The lid is transparent acrylic for good visibility during extraction. An integrated safety switch automatically stops the motor when the lid is opened.

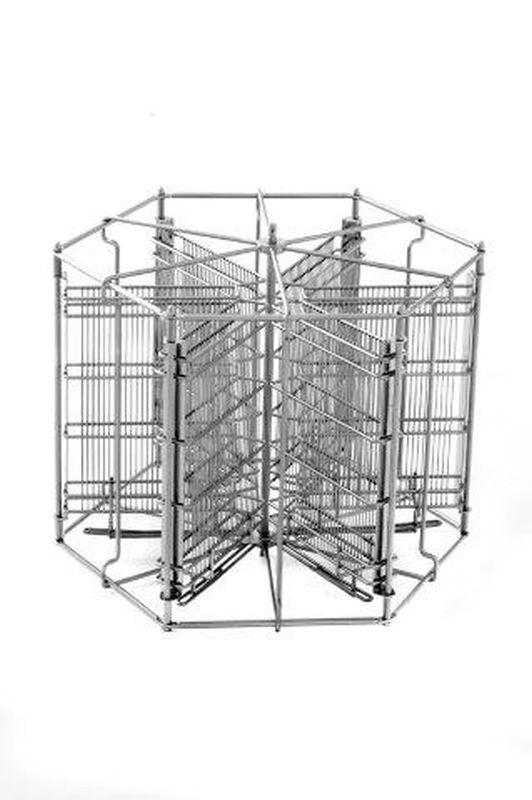

The frame pockets consist of upright grid bars with an appropriate density so that the frames are not damaged during spinning. A special mechanism links the frame pockets; this prevents honey from accumulating in the pockets and keeps the frames dry after extraction.

Comfort features and optional accessories:

• 12V DC → 230V AC inverter, 600W: Art. 4627 – allows operation from a 12V battery.
• Bottom heater for extractor Ø 76 cm incl. installation (recommended for faster draining, quicker filtering and easier cleaning): Art. No. 7125.
• Rubber pads for feet to reduce slipping: Art. 7769.

Compact design, quiet operation and high reliability. 2 years warranty.

Technical data:

• Type: LTA 6SS-M
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Drive: Fully automatic program control with motor 180 W / 230 V (fully automatic controller)
• Number of frames (standard / shallow): 6 / 6
• Maximum frame size: 23 x 48 cm
• Suitable for: Langstroth 1/1; DNM / EHM; DNM shallow / EHM shallow; Langstroth honey super; Zander; Zander shallow; and up to 12 combs up to 11 cm high
• Drum diameter (inside / outside): 76 / 79 cm; inner drum diameter: 76 cm
• Cassette size (pocket size): 24 x 40 x 4.5 cm
• Drum height without / with drive: 73 / 93 cm
• Total height with feet / with drive: 112 / 132 cm
• Height from floor to honey gate: 39 cm
• Honey outlets: 1x Ø 38 mm + 1x Ø 42 mm (one welded at the lowest possible point)
• Bottom: seamless-welded and sloped toward the pinch valve
• Handles: two side handles
• Made in EU (Slovenia)
