Suitable for: Langstroth 1/1, Langstroth honey super, DNM/EHM (including shallow), Zander (including shallow) and others; spins 8 frames up to a maximum of 23 x 48 cm (alternatively 16 combs up to 11 cm high).

Frame pocket size: 24 x 40 x 4.5 cm
Drive: 250 W / 230 V motor with fully automatic control
Inner diameter of the drum: 82 cm

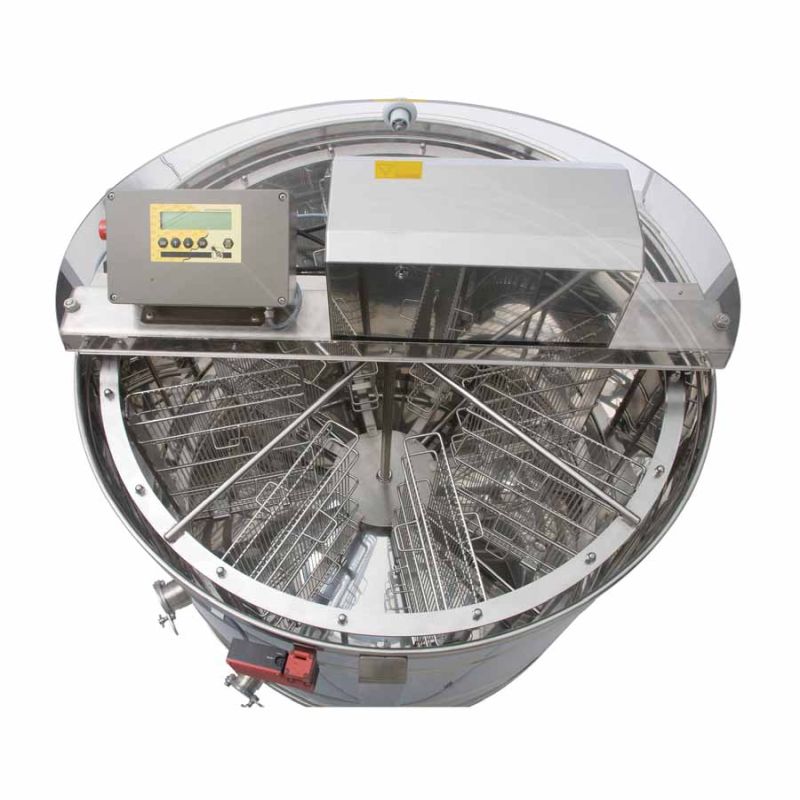

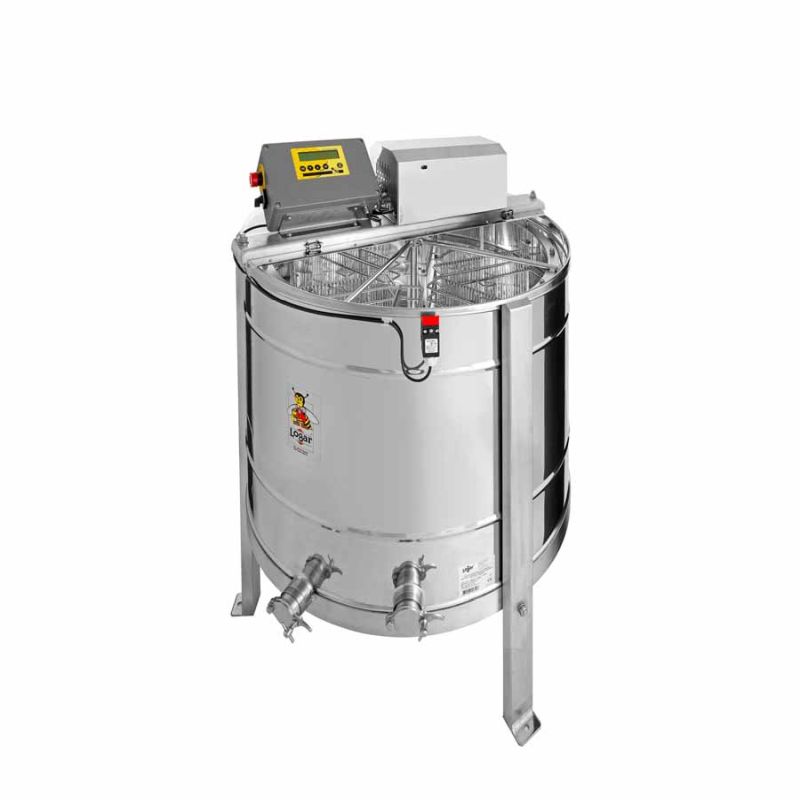

The 8-frame self-reversing honey extractor from Logar (fully electronic) is equipped with a 250 W motor (230 V), a fully automatic control unit and an integrated safety device that automatically stops the motor when the lid is opened. The extractor has two stainless steel pinch valves 6/4'' (Ø 42 mm); one is fitted at the lowest possible point so that all honey can drain from the drum. All parts that come into contact with honey are made from food-grade materials. The lid is transparent acrylic.

The frame pockets are made from vertical grid bars at a suitable spacing so that frames are not damaged during spinning. They are linked by a special mechanism that prevents honey from accumulating in the pockets — frames are dry after extraction.

The honey extractor is dismountable and will pass through door openings from 80 cm width, making transport and installation straightforward.

The fully electronic control allows fully automatic execution of the extraction process so you can attend to other tasks. Operation is via a membrane keypad and a two-line digital LCD display. Up to 8 programs can be stored; each program can be configured with up to 8 time/direction/speed steps. Basic programs are preinstalled and can be flexibly modified.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:
• Bottom heater for 82 cm extractor including installation – our recommendation for faster honey flow, quicker filtering and easier cleaning (Art. No. 7128)
• Power inverter 12V DC→230V AC, 600 W for use with 12V accumulator/battery (Art. No. 4627)
• Rubber pads for the feet to reduce slipping (Art. No. 7769)

Technical data:

• Drive: program-controlled fully automatic with 250 W / 230 V motor; fully automatic control and integrated safety shut-off when the hood is opened.
• Number of frames: 8 (full/shallow 8/8); alternatively 16 combs up to a height of 11 cm.
• Max. frame size: up to 23 x 48 cm.
• Frame pocket size: 24 x 40 x 4.5 cm.
• Drum diameter: inner 82 cm / outer 86 cm; bottom welded seamless and inclined toward the pinch valve.
• Heights: total height with feet / with drive = 112 / 132 cm; drum height without/with drive = 75 / 97 cm; height from base to honey valve = 37 cm.
• Honey valves: 2x Ø 42 mm (pinch valves), one welded at the lowest possible point.
• Frame pockets: upright grid bars with a special mechanism – frames are dry after extraction.
• Lid: transparent acrylic.
• Material: stainless steel grade W.No. 1.4301 / AISI 304.
• Type: LTA 8SS-M.
• Manufactured in the EU (Slovenia).
• Dismountable for transport through door openings from 80 cm.
• Warranty: 2 years.
