Suitable for: Langstroth 1/1, Langstroth honey super, Austrian wide comb, Kuntzsch wide, Gerstung and similar frames. Maximum frame size: 26.5 x 48 cm.

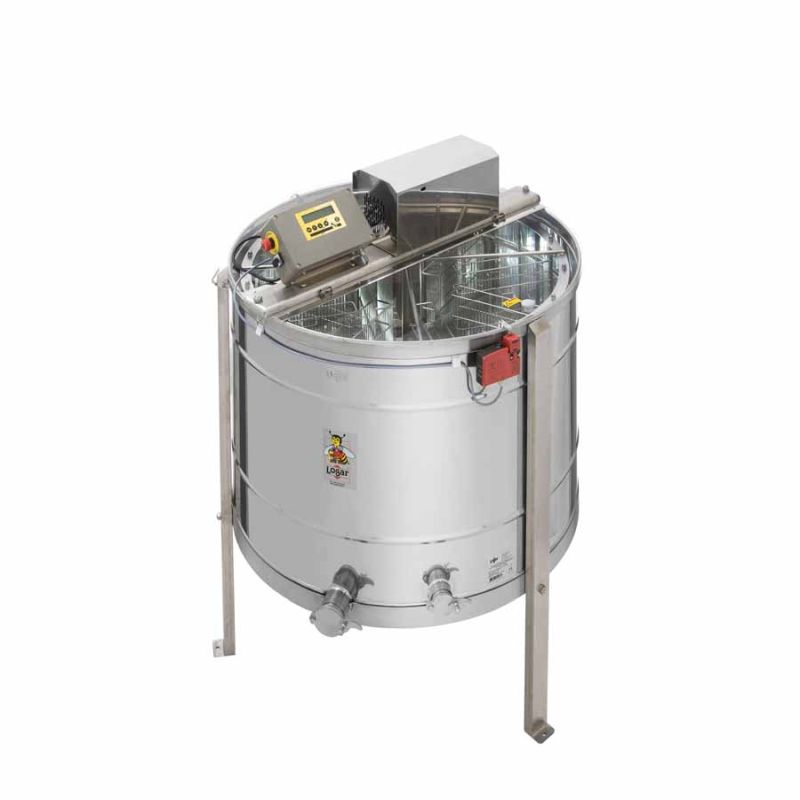

8-frame self-reversing honey extractor by Logar, equipped with a 370 W / 230 V motor drive, fully automatic control and an integrated safety device that automatically switches off the motor when the lid is opened. State-of-the-art technology enables an innovative design of the extractor bowl: seamlessly welded and inclined towards the outlet. The extractor is fitted with two stainless pinch valves (6/4'' and 2''); the 2'' pinch valve is installed at the lowest possible point so that all honey can flow out. All honey-contact parts are made from food-grade materials. The lid is made of transparent acrylic.

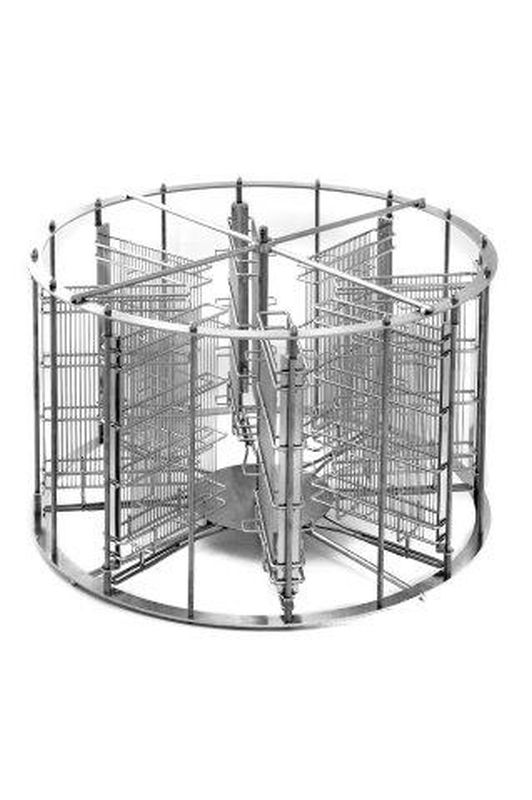

The frame pockets are made from vertical grid bars of appropriate density so that frames are not damaged during extraction. They are connected by a special mechanism. The frame pockets prevent honey from accumulating inside them, so the frames are dry after extraction. Frame pockets for frames up to 28 cm high are available at extra cost.
The extractor is dismantlable and can therefore be easily transported through an 80 cm wide door frame.
The fully electronic, fully automatic control allows a completely independent extraction process; operation is via a membrane keypad and a two-line digital LCD. Up to 8 programs can be stored, each program with up to 8 time settings, directions and rotational speeds. Basic programs are preset and can be modified at any time.
Compact construction, quiet running and reliable operation. Warranty: 2 years.
Optional accessories:
- Base heater for extractor Ø 95–110 cm incl. installation – recommended for faster honey flow, quicker filtering and easier cleaning. Art. No. 7126
- Voltage converter 12V DC → 230V AC, 600 W for operation from a 12V battery (if 230 V is not available). Art. No. 4627
- Rubber pads for feet to reduce slipping. Art. No. 7769
Technical details:
- Type: LTA 8SS
- Material: Stainless steel W.Nr. 1.4301 / AISI 304
- Drive: Programmed fully automatic with 370 W / 230 V motor; fully automatic control, membrane keypad and two-line digital LCD; up to 8 programs with 8 time/direction/speed steps each
- Extractor type: Self-reversing extractor, 8 frames (full/flat 8/8)
- Suitable for: Langstroth 1/1; Langstroth honey super; Austrian wide comb; Kuntzsch wide; Gerstung; etc.
- Maximum frame size: 26.5 x 48 cm
- Cassette size: 27.5 x 40 x 4.5 cm
- Vat diameter: inner 95 cm / outer 98 cm
- Total height: with feet 111 cm / with drive 135 cm; height of vat without/with drive 75 / 97 cm
- Height from floor to honey tap: 37 cm
- Honey taps: 1x Ø 42 mm + 1x Ø 53 mm (pinch valves 6/4'' and 2''); 2'' pinch valve fitted at the lowest possible point
- Lid: transparent acrylic
- All honey-contact parts: food-grade materials
- Dismantlable and transportable through an 80 cm door frame
- Made in EU (Slovenia)
- Warranty: 2 years
