Suitable for: Langstroth 1/1, Langstroth honey super, Austrian wide-frame, Kuntzsch wide, Gerstung. Maximum frame size: 26.5 x 48 cm.
The Logar self-reversing extractor stands for high-quality workmanship and modern technology that make extraction efficient, gentle and safe. Ideal for beekeepers who value reliability and convenient automation.
Cassette size: 27.5 x 40 x 4.5 cm
Drive: motor 180 W / 230 V with fully automatic control
Inner diameter of drum: 76 cm
6-frame self-reversing honey extractor with 180 W / 230 V motor drive and fully automatic control. It has an integrated safety switch that automatically shuts off the motor when the lid is opened. State-of-the-art technology allows an innovative design of the extractor floor. The bottom of the drum is seamless welded and sloped toward the outlet. The extractor has two stainless-steel honey valves 6/4", one installed at the lowest possible point so that all honey can flow out of the extractor. All parts that come into contact with honey are made of food-grade materials. The lid is made of transparent acrylic glass.
The frame pockets are made from vertical grid bars of appropriate density so that frames are not damaged during extraction. They are connected by a special mechanism. The pockets prevent honey from pooling during extraction, so the frames are dry after spinning.
Allows extraction of 6 frames up to a height of 26.5 cm and a top-bar length of 48 cm.

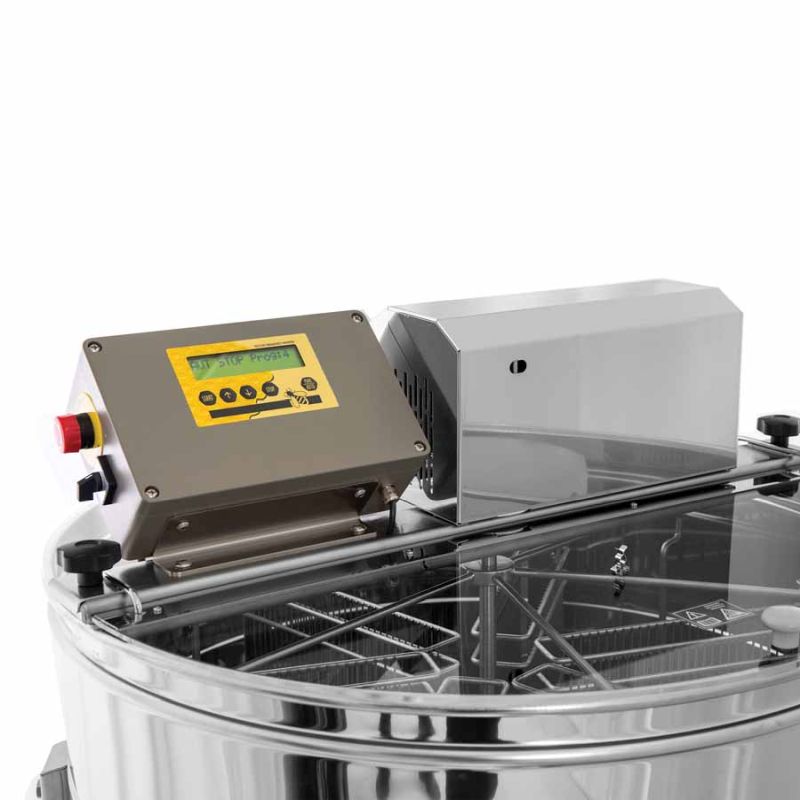

The fully automatic control enables the entire extraction process to run autonomously, allowing you to attend to other tasks in the meantime. Operation is simple via a membrane keypad and a two-line digital LCD screen. You can program and save up to 8 different programs. Each program can be set to 8 different times, directions and rotational speeds. Basic extraction programs are pre-set but can be changed, extended and saved at any time.
Compact design, quiet operation and reliable performance.
Warranty: 2 years
Optional accessories:• Bottom heater for extractor Ø 76 cm incl. installation – our recommendation for faster honey flow from the extractor, quicker honey filtering and easier cleaning, Art. No.
7125• If 230 V is not available, the voltage converter 12 V DC → 230 V AC, 600 W (Art.
4627) allows operation of the extractor using a 12 V battery/accumulator.
• Fitting rubber pads (Art.
7769) to the extractor feet reduces slipping.
Technical data:- Drive: programmable fully automatic with 180 W / 230 V motor
- Number of frames (deep / shallow): 6 / 6
- Suitable for: Langstroth 1/1, Langstroth honey super, Austrian wide-frame, Kuntzsch wide, Gerstung (max. frame 26.5 x 48 cm)
- Bottom: seamless welded and sloped toward the honey valve

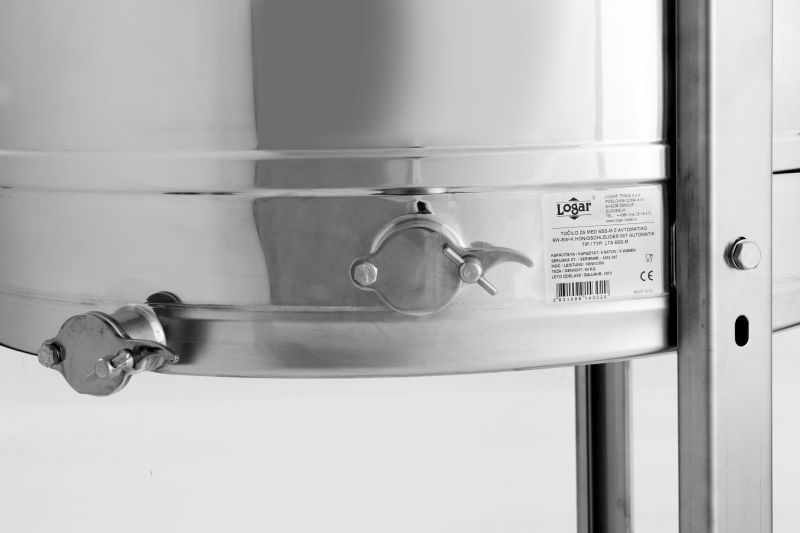

- Honey valves: 2x (at the lowest possible point), Ø 38 mm + Ø 42 mm
- Cassette size: 27.5 x 40 x 4.5 cm
- Drum diameter: inside 76 cm / outside 79 cm
- Drum height without/with drive: 73 / 93 cm
- Total height with feet / with drive: 112 / 132 cm
- Height from floor to honey valve: 39 cm

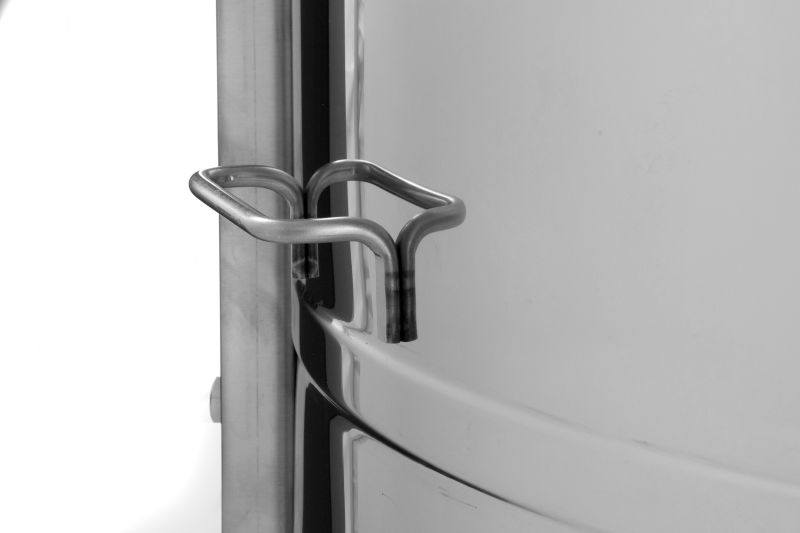

- Handles: two side handles
- Extractor type: self-reversing honey extractor
- Made in EU (Slovenia)
- Type: LTA 6SS
- Material: stainless steel W.Nr. 1.4301 / AISI 304
