Suitable for: Langstroth 1/1, Langstroth honey super, DNM/EHM (including shallow), Zander (including shallow), Austrian widesuper, Kuntzsch wide, Gerstung and many others — maximum frame: 23 x 48 cm.
Cassette size: 24 x 40 x 4.5 cm
Drive: Motor 110 W / 230 V
Inner diameter of drum: 76 cm

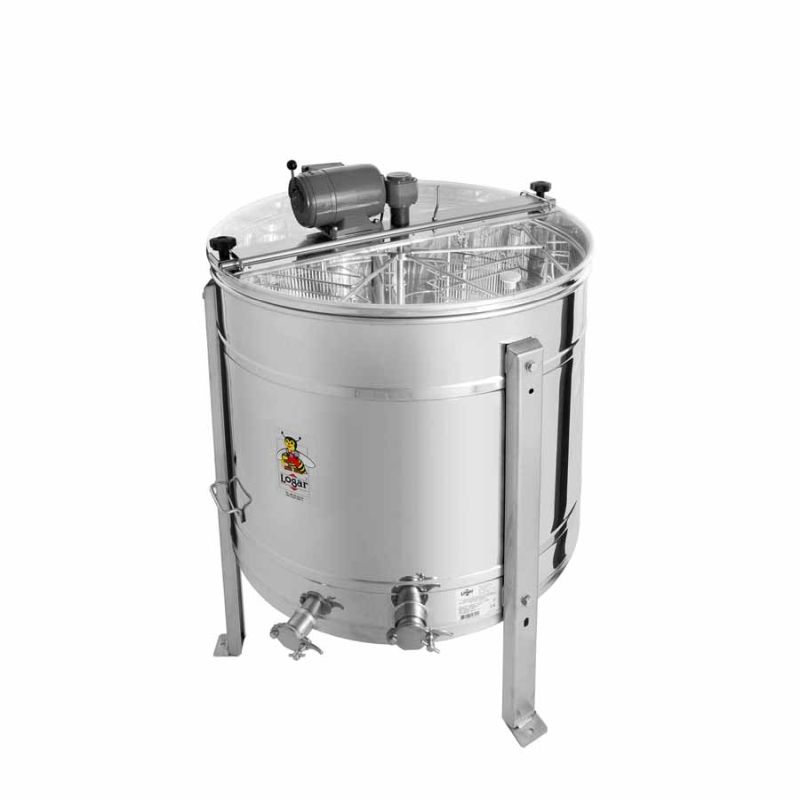

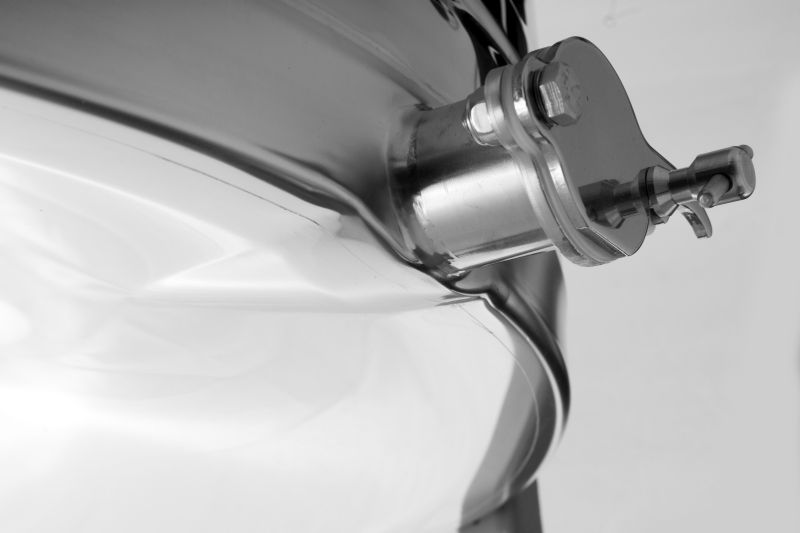

6-frame self-reversing honey extractor with 110 W / 230 V motor and safety switch that automatically stops the motor when the lid is opened. The control lever allows you to set the desired speed between 0 and 280 revolutions per minute and to select left or right rotation. State-of-the-art engineering has enabled an innovative design of the extractor bottom. The drum floor is seamless-welded and sloped toward the outlet. The stainless steel pinch valve is welded at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is transparent acrylic.
The frame cages are made from vertical rods of appropriate density so the frames are not damaged during spinning. They are connected by a special mechanism. The frame cages prevent honey from pooling inside them during extraction, so the frames are dry after spinning.
Allows extraction of 6 frames up to a height of 23 cm and a top-bar length of 48 cm.
Warranty: 1 year
Optional accessories:• Base heater for extractors ø 95–110 cm including installation – our recommendation for faster honey flow out of the extractor, quicker filtering of honey and easier cleaning of the extractor,
Art. No. 7126• If 230 V is not available, the voltage converter 12V DC–230V AC, 300 W (
Art. No. 4626) allows use of the extractor with a 12 V accumulator/battery.
• Fitting rubber pads (
Art. No. 7769) to the extractor feet reduces slipping.
Technical data:
- Type: LTM 6SS-M
- Drive: Motor 110 W / 230 V with safety switch; stepless control 0–280 rpm; left/right rotation
- Number of frames (full / shallow): 6 / 6
- Suitable for: Langstroth 1/1, Langstroth honey super, DNM/EHM, DNM shallow/EHM shallow, Zander, Zander shallow, Austrian widesuper, Kuntzsch wide, Gerstung and many others
- Largest frame (H x top-bar length): 23 x 48 cm
- Drum diameter (inner / outer): 76 / 79 cm
- Drum height without / with drive unit: 73 / 86 cm
- Total height with feet / with drive unit: 112 / 125 cm
- Height from floor to honey tap: 39 cm

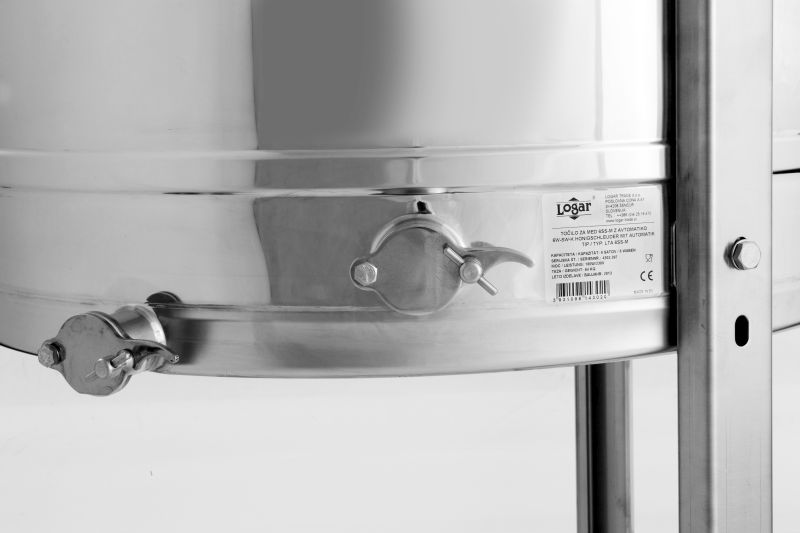

- Honey tap: welded at the lowest point; honey taps Ø: 1x Ø 38 mm + 1x Ø 42 mm
- Bottom: seamless-welded and inclined towards the pinch valve
- Cassette size: 24 x 40 x 4.5 cm

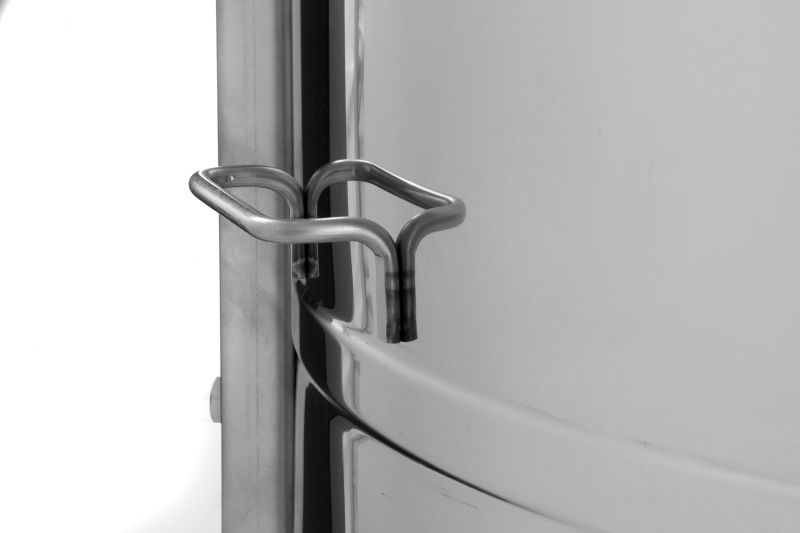

- Handles: two side handles
- Material: Stainless steel W.Nr. 1.4301 / AISI 304
- Extractor type: self-reversing extractor
- Origin: Made in EU (Slovenia)
- Warranty: 1 year
