Suitable for: Dadant brood chamber, Dadant honey super, Type B and ZaDant. Maximum frame size: 28.6 x 48 cm (H x top-bar length).
Cassette size: 29 x 40 x 4.5 cm
Drive: 180 W / 230 V motor with fully automatic control
Tank inner diameter: 76 cm

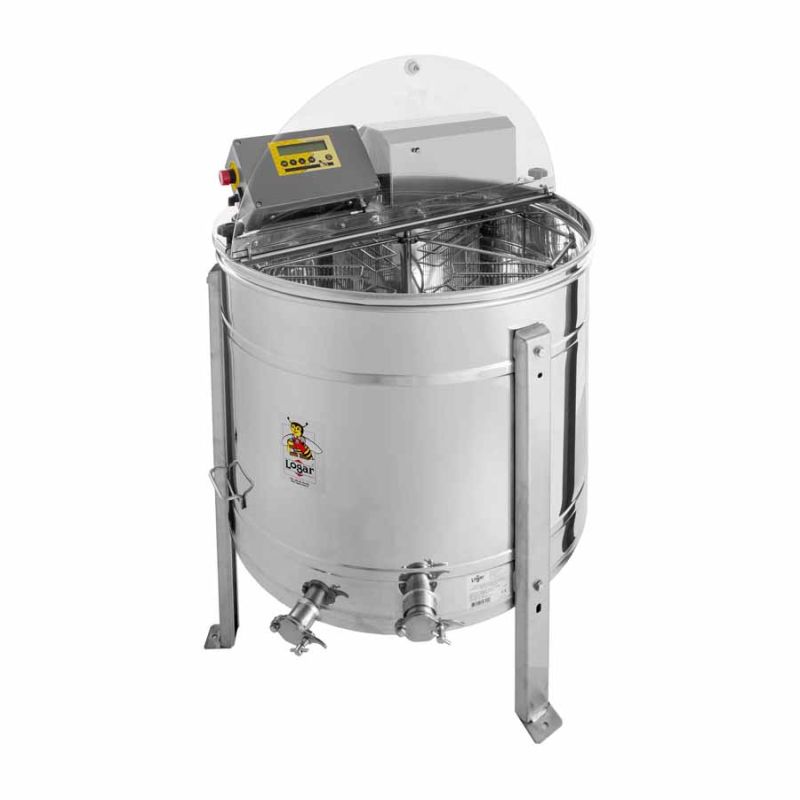

4-frame self-reversing honey extractor with 180 W / 230 V motor and fully automatic control. It features an integrated safety switch that automatically stops the motor when the lid is opened. State-of-the-art technology allows an innovative design of the extractor floor. The tank floor is seamless-welded and sloped towards the outlet. The stainless steel pinch valve is fitted at the lowest possible point so all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made from transparent acrylic. This extractor accommodates larger frames up to a height of 28.6 cm. For this reason the lid is opened over the motor using special hinges.
The frame pockets are made from vertical grid rods of appropriate density to prevent damage to the frames during extraction. They are connected by a special mechanism. The design of the frame pockets prevents honey from pooling in them during extraction, so the frames are dry after spinning.
Allows extraction of 4 frames up to a height of 28.6 cm and a top-bar length of 48 cm.
The fully automatic controller lets the entire extraction process run independently so you can attend to other tasks. Operation is simple via a membrane keypad and a two-line digital LCD display. You can set and store up to 8 different programs. Each program can be configured with up to 8 different times, directions and speeds. Basic extraction programs are pre-set but can be modified, expanded and saved.
Compact design, quiet operation and reliable performance.
Warranty: 2 years
Optional accessories:
• If 230 V is not available, the voltage inverter 12V DC–230V AC, 600 W (Item No. 4627) allows operation of the extractor from a 12 V battery.
• Bottom heater for extractor Ø 76 cm incl. installation – our recommendation for faster drainage of honey from the extractor, quicker sieving and easier cleaning, Item No. 7125
• Fitting rubber pads to the extractor feet reduces slipping (Item No. 7769).
Technical data:
- Type: LTA 4SS-V
- Material: Stainless steel W.No. 1.4301 / AISI 304
- Drive: Fully automatic program control with 180 W / 230 V motor
- Number of frames (full / shallow): 4 / 8
- Maximum frame size: 28.6 x 48 cm
- Cassette size: 29 x 40 x 4.5 cm
- Tank diameter (inside / outside): 76 / 79 cm
- Tank inner diameter: 76 cm
- Tank height without / with drive: 73 / 93 cm
- Total height with feet / with drive: 112 / 132 cm
- Height from floor to honey tap: 39 cm

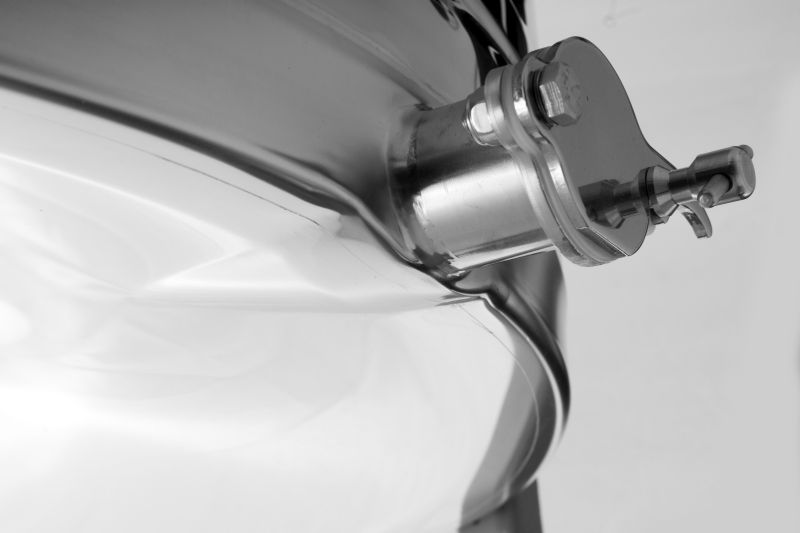

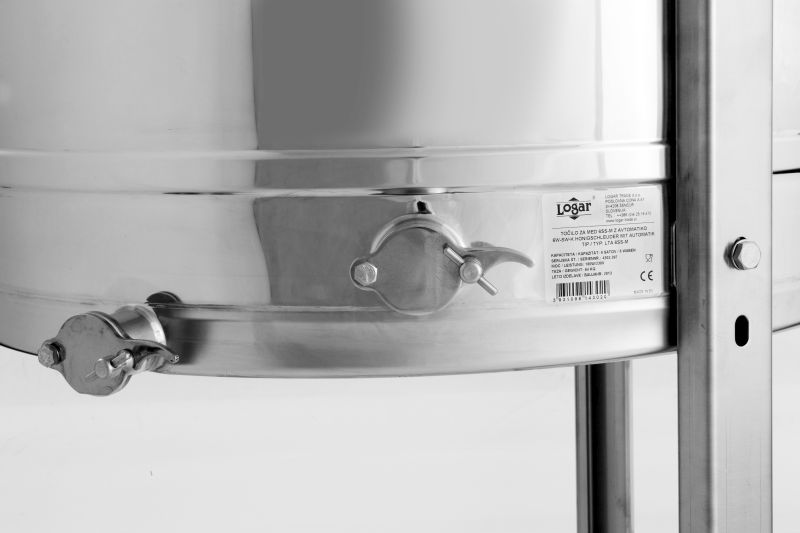

- Honey taps: fitted at the lowest possible point; taps Ø: 1 x Ø 38 mm + 1 x Ø 42 mm
- Floor: seamless welded and sloped towards the pinch valve
- Lid: transparent acrylic

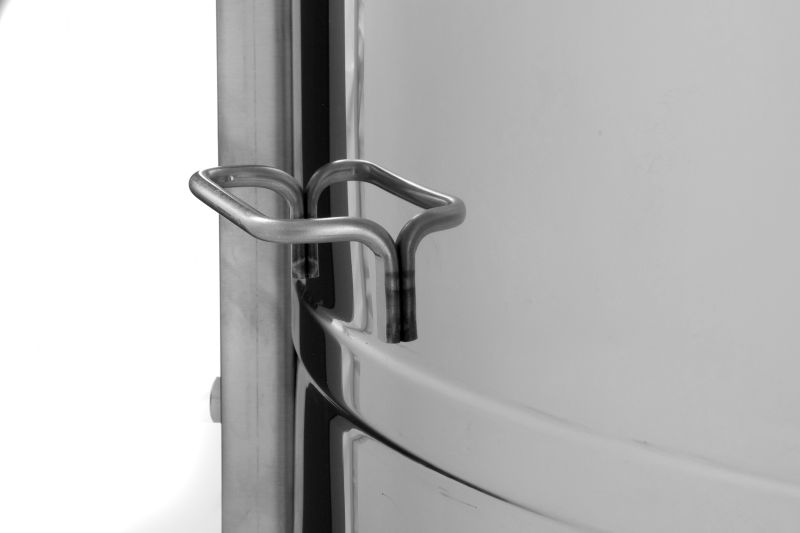

- Handles: two side handles
- Made in EU (Slovenia)
- Warranty: 2 years
