Suitable for: Langstroth 1/1, Langstroth honey super, Type B, Austrian wide-comb, Kuntzsch wide, Gerstung — allows extraction of up to 16 frames with maximum dimensions 26.5 x 48 cm.

Cassette size: 27.5 x 44 x 4.5 cm
Drive: Motor 750 W / 230 V with fully automatic control
Inner diameter of drum: 110 cm

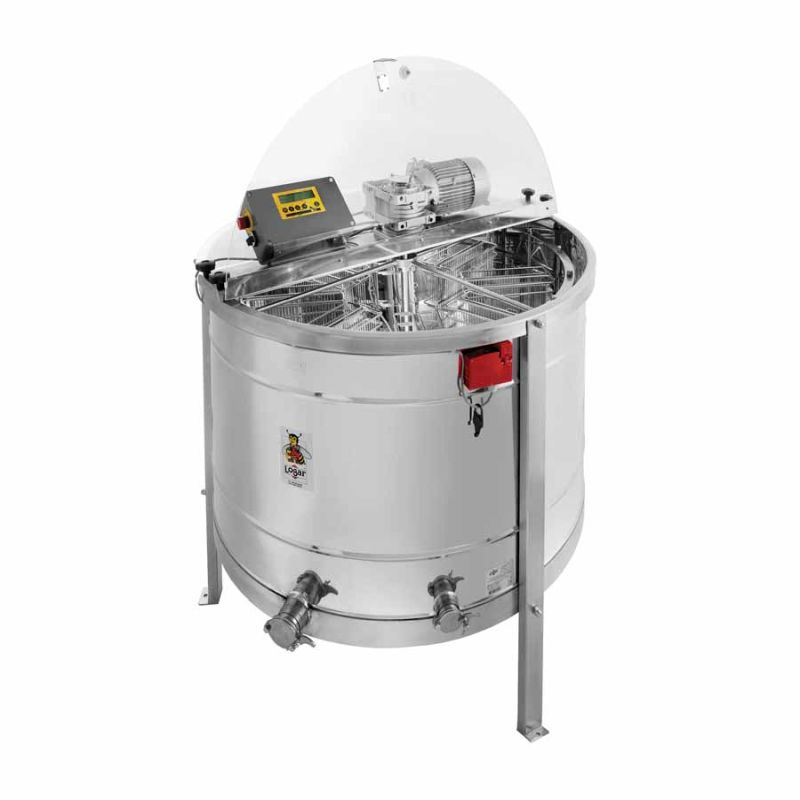

16-frame self-reversing honey extractor with 750 W / 230 V motor drive, fully automatic control and an integrated safety lock that prevents the lid from being opened during operation. The frame pockets in the extractor are double-sided, with a sheet between them for the honey to flow off. The extractor is fitted with two stainless squeeze valves. The valve(s) are installed at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic.

The frame baskets are made from vertical mesh bars of appropriate density to prevent damage to the frames during extraction. They are connected by a special mechanism. The baskets prevent honey from accumulating in the pockets during extraction, so the frames are dry after spinning.

The extractor is disassemblable and can therefore be easily moved through a door opening of 80 cm.

Fully automatic control allows the entire extraction process to run independently, freeing you to attend to other tasks. Operation is simple via a membrane keypad and a two-line digital LCD display. You can set and save up to 8 different programs. Each program can be configured with up to 8 different times, directions and speeds. Basic extraction programs are pre-set but can be changed, supplemented and re-saved at any time.
Compact design, quiet operation and reliable performance.

Warranty: 2 years

Optional equipment:
• Bottom heater for extractor Ø 95-110 cm including installation — our recommendation for faster honey flow from the extractor, quicker sieving of honey and easier cleaning of the extractor, Art. Nr. 7126

Technical data:

• Type: LTA 16S SD
• Suitable for: Langstroth 1/1, Langstroth honey super, Type B, Austrian wide-comb, Kuntzsch wide, Gerstung and more — maximum possible frame size: 26.5 x 48 cm
• Drive / Control: Fully automatic program control with 750 W / 230 V motor; fully automatic control with membrane keypad and two-line LCD; up to 8 programs with 8 times, directions and speeds each
• Capacity: 16 frames (full/flat)
• Drum data: Inner diameter 110 cm; drum diameter inside/outside 110 / 117 cm; overall height with feet / with motor 113 / 136 cm; drum height without/with motor 79 / 100 cm; height from floor to honey tap 34 cm
• Cassette size: 27.5 x 44 x 4.5 cm
• Honey taps: 2 squeeze valves, Ø 42 mm + Ø 53 mm, installed at the lowest possible point for complete honey drainage
• Material: Stainless steel W.No. 1.4301 / AISI 304 — all honey-contacting parts are food-grade
• Extractor type: Self-reversing extractor
• Additional features: Transparent acrylic lid; integrated safety lock; disassemblable for transport through an 80 cm door opening; quiet operation; made in EU (Slovenia)
