Suitable for: Dadant Blatt (honey- and brood frames), Zander 1.5 / Zander Jumbo, and for 12 combs up to a height of 17 cm. Maximum frame size: up to 34 x 48 cm (top bar length 48 cm).

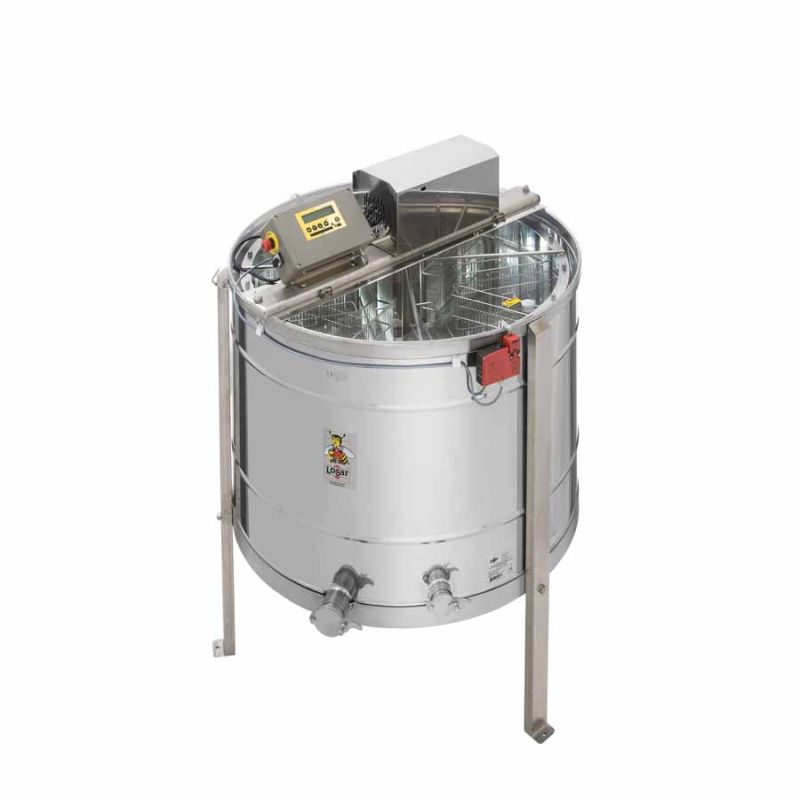

6‑frame self-reversing honey extractor from Logar with motor drive 370 W / 230 V and fully automatic electronic control. The extractor features an integrated safety device that automatically switches the motor off when the lid is opened. Modern tank-bottom design: seamlessly welded and sloped toward the outlet, ensuring very good honey drainage.

All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic. The extractor is equipped with two stainless steel honey valves (Ø 42 mm and Ø 53 mm). The larger valve (2") is mounted at the lowest possible point so that all honey can flow out.

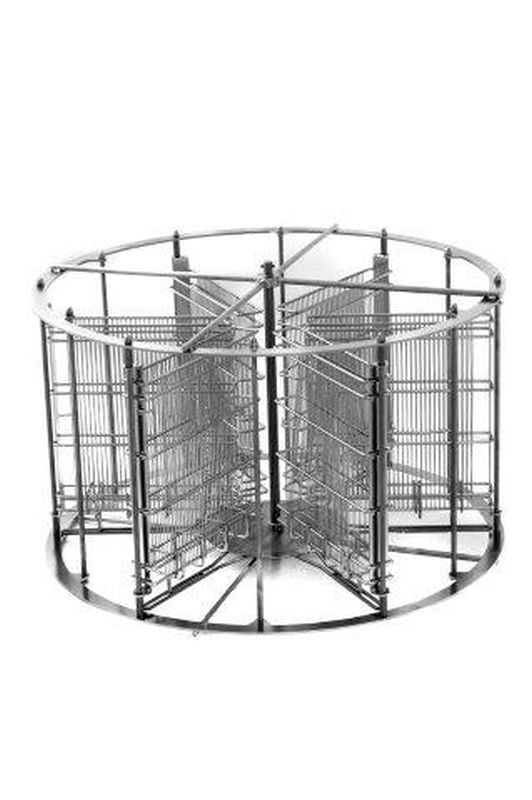

The comb baskets are made from vertical mesh bars with a suitable spacing to prevent damage to the frames during extraction. They are connected to each other by a special mechanism. The design of the baskets prevents honey from accumulating in the pockets, so the frames remain dry after extraction. Comb baskets for frames up to a height of 37 cm are available at extra cost.

The honey extractor can be disassembled and carried through an 80 cm wide door frame. The fully electronic control enables a completely automatic extraction process, operated via a membrane keypad and a two-line digital LCD display. Up to 8 programs can be stored; each program can be set with up to 8 different times, directions and speeds. Basic programs are preconfigured and can be individually adjusted.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:
• Bottom heater for honey extractor Ø 95–110 cm including installation – our recommendation for faster honey flow, quicker filtering and easier cleaning: Art. No. 7126
• Voltage inverter 12V DC → 230V AC, 600 W (allows operation from a 12V battery/accumulator): Art. No. 4627
• Rubber pads for legs to reduce slipping: Art. No. 7769

• Type: LTA 6SS-V
• Drive: programmable full-automatic with 370 W / 230 V motor
• Extractor type: self-reversing extractor
• Number of frames (standard / shallow): 6 / 12
• Suitable for: Dadant Blatt (honey- and brood frames), Zander 1.5 / Zander Jumbo; and 12 combs up to 17 cm height
• Maximum frame size: 34 x 48 cm (top bar length 48 cm)
• Tank diameter (inside / outside): 95 / 98 cm (tank diameter = 95 cm)
• Cassette size: 35 x 40 x 4.5 cm
• Total height (with feet / with drive): 112 / 132 cm
• Tank height (without / with drive): 75 / 97 cm
• Height from floor to honey valve: 37 cm
• Honey valves (Ø): 1 x Ø 42 mm + 1 x Ø 53 mm
• Material: stainless steel W.Nr. 1.4301 / AISI 304
• Made in: EU (Slovenia)
• Features: seamlessly welded, sloped tank bottom; transparent acrylic lid; integrated safety cut-off when lid is opened; disassemblable design for narrow doorways
• Warranty: 2 years
