Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super, Zander, Zander shallow, Austrian broad comb, Kuntzsch wide, Gerstung and many more. Maximum frame: 26 x 48 cm (height 26 cm, top-bar length 48 cm).
Capacity: 12 frames up to a height of 26 cm
Drive: Motor drive 180W / 230V with fully automatic control
Inner diameter of the tub: 76 cm
24/12-frame radial honey extractor with 180W / 230V motor drive, fully automatic control and integrated safety device that automatically shuts off the motor when the lid is opened. State-of-the-art technology allows an innovative design of the extractor bottom. The bottom of the tub is welded seamless and inclined toward the outlet. The extractor has two stainless steel pinch valves (6/4''), one welded at the lowest possible point so that all honey can flow out. All parts of the extractor that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic glass.
The fully automatic control lets you freely choose rotational speeds and times. You can set and store up to 8 different programs. Each program can be configured with up to 8 different times, directions and speeds. Operation is simple via a membrane keypad.
Compact design, quiet operation and reliable performance.

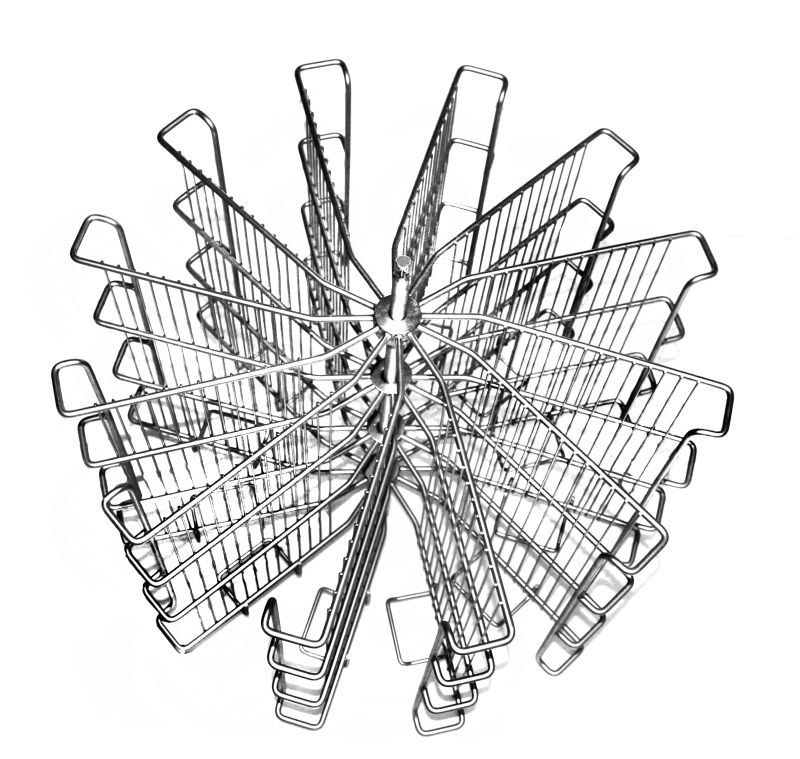

Frames do not need to be flipped during extraction because the centrifugal force together with the natural tilt of the cells ensures simultaneous unloading from both sides. The extraction basket is constructed so that the frame rests against the hanging grid while spinning, preventing damage to the frame.
Allows extraction of frames up to a height of 26 cm and a top-bar length of 48 cm.
Warranty: 2 years
Optional equipment:
• Bottom heating for 76 cm extractor including installation – our recommendation for faster draining of honey from the extractor, quicker straining and easier cleaning, Art. No. 7125
• If 230V is not available, the voltage converter 12V DC–230V AC, 300W (Art. No. 4626) allows operation of the extractor from a 12V accumulator/battery.
• Fitting rubber pads (Art. No. 7769) to the feet of the extractor reduces slipping.
Technical data:
- Type: LTA 12SRM
- Capacity / number of frames: 12 frames (deep/shallow 12/12)
- Maximum frame: 26 x 48 cm (height 26 cm, top-bar length 48 cm)
- Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super, Zander, Zander shallow, Austrian broad comb, Kuntzsch wide, Gerstung and more
- Drive / control: Programmed fully automatic with 180 W / 230 V motor; fully automatic control with up to 8 storable programs, each program up to 8 times/directions/speeds; operation via membrane keypad; integrated safety shut-off when the lid is opened
- Tub diameter (inside/outside): 76 / 79 cm (inside diameter 76 cm)
- Heights: Tub height without/with drive 73 / 92 cm; total height with feet / with drive 112 / 125 cm; height from floor to honey gate 39 cm

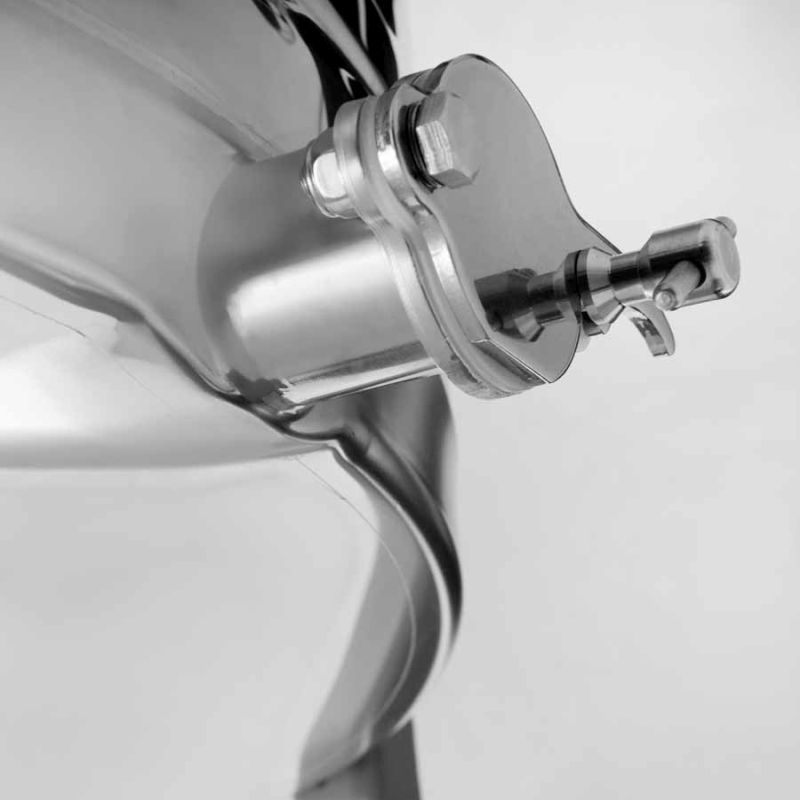

- Bottom / honey gate: Bottom welded seamless and inclined toward the pinch valve; honey gate welded at the lowest possible point; honey outlets Ø 38 mm and Ø 42 mm; two stainless steel pinch valves 6/4''
- Grid area: 26 x 40 cm (hanging system prevents frame damage)

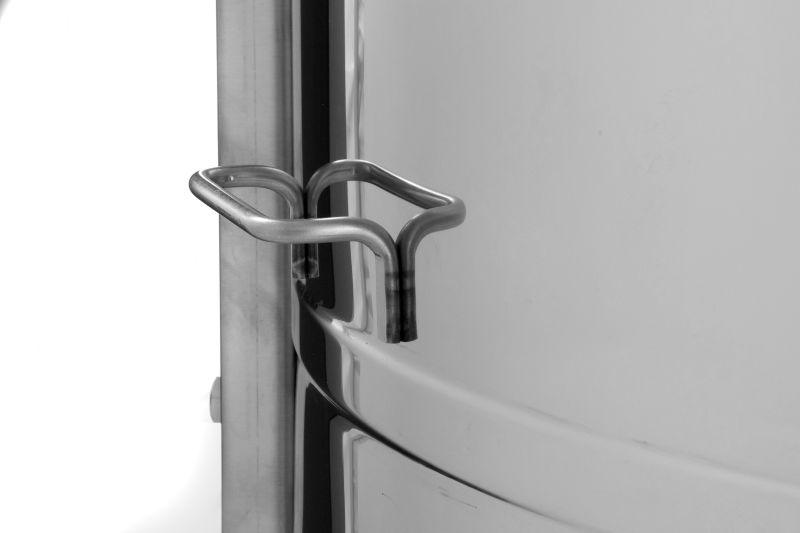

- Handles: two side handles
- Material: stainless steel W.Nr. 1.4301 / AISI 304
- Extractor type: radial extractor
- Made in: EU (Slovenia)
- Warranty: 2 years
