Suitable for: Honey and other viscous liquids. Adjustable fill quantities from 30–2,000 g – ideal for semi-automatic jar filling.

Affordable semi-automatic honey filling system

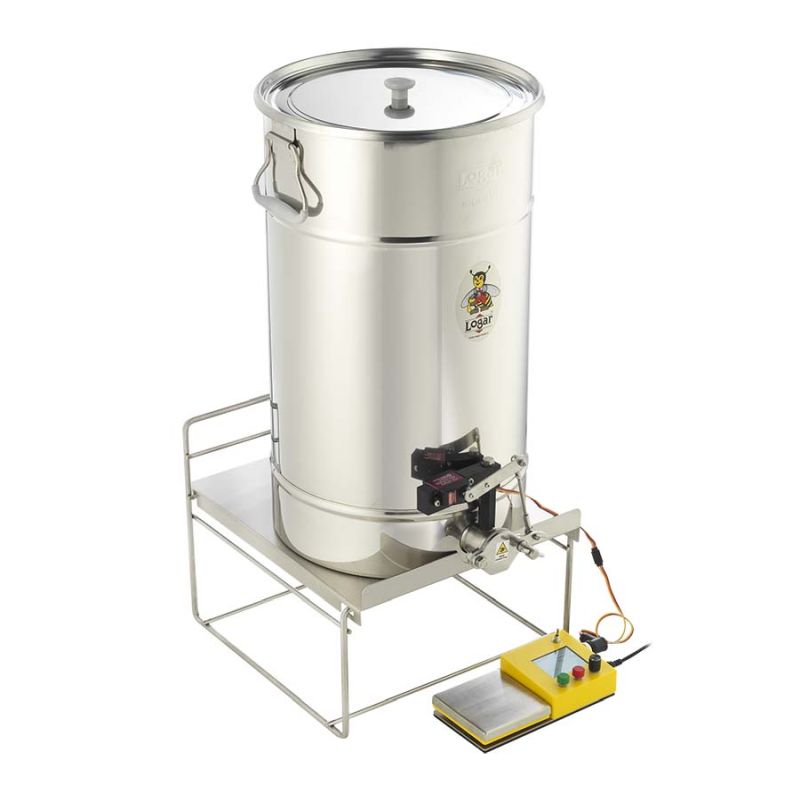

Components:
- Filling system with weighing and control unit with color display, servo mechanism and power supply
- 50 kg filling container with sloped bottom
- Filling stand with 3 height settings, stainless steel
The filling system is mounted on our 50 kg filling container with sloped bottom for easier operation. A servomotor mounted on the outlet line controls the closing of the pinch-valve cover. The honey filler is designed for the semi-automatic filling of honey or other viscous liquids.

Filling starts automatically when an empty jar is detected using the stored tare value. The fill quantity is measured by an external scale integrated into the system and controlled electronically. Filled jars are recorded by a counter. Fill quantities can be set between 30 g and 2,000 g. Operation is via a 2.8" color monitor and an extensive settings menu. The filling process is fully hygienic and simple; continuous supervision of the outlet valve is not required. Users can close lids and apply labels during the filling process.

FILL QUANTITIES: 30–2,000 g
FILL ACCURACY: ± 5 g
OPERATING MODES: Manual / Automatic
CONTROL MENU: also available in German

ADVANTAGES:
- Extensive menus with optional parameters: jar type, outlet-pipe opening angle, tare, tolerance (the quantity set as an allowance to prevent underfilling compared to the jar label), counter and other automatic functions.
- Thanks to the numerous optional parameters, the filler can be optimally adjusted at any time to the consistency of the honey.
- Preconfiguration for five different jar types/sizes.
- Automatic start upon jar detection.
- Fast, hygienic, contactless changeover between jars.
- Audible feedback.
- The filler enables better use of working time. While a jar is being semi-automatically filled, the operator can close and label the previous jar.

The filling container and stand are made of stainless steel W. Nr. 1.4301 / AISI 304.

Optional accessories:
- Hermetic lid with clamp ring
- Art. 246001 height-adjustable shelf for Art. 2460

• Suitable for: Honey and other viscous liquids; Fill quantities: 30–2,000 g
• Fill quantities & accuracy: 30–2,000 g; Fill accuracy ± 5 g
• Operating modes & control: Manual / Automatic; Menu also in German; 2.8" color monitor; extensive parameters (jar type, outlet angle, tare, tolerance, counter, etc.)
• Components: Filling system with weighing and control unit (color display), servo mechanism and power supply; 50 kg filling container with sloped bottom; filling stand with 3 height settings, stainless steel
• Features: Servomotor-controlled pinch-valve cover, automatic jar detection via tare, counter for filled jars, hygienic contactless jar changeover, audible feedback
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Optional accessories: Hermetic lid with clamp ring; Art. 246001 height-adjustable shelf for Art. 2460
• Product number (Art. No.): 7290
