Suitable for frames up to max. 30 x 48 cm: compatible with Langstroth 1/1, Langstroth honey super, Dadant (brood and honey), DNM/EHM (including shallow), Zander (including shallow), Swiss hive (brood and honey), Austrian wide comb, Kuntzsch wide, Gerstung, ZaDant and many more.

NEW: Innovative honey extractor with integrated straining can that ensures high stability during extraction!

ADVANTAGES of the new extractor with straining can:
- HIGH STABILITY WHILE EXTRACTING: The weight of the honey in the straining can stabilizes the extractor during draining and allows the beekeeper to run at higher speeds — a clear advantage over conventional, unweighted extractors.
- TIME SAVING: Extraction and straining in a single step — a lot of honey already flows from the cone into the straining can.
- ECONOMICAL 3-in-1 SYSTEM: 1) Extract honey, 2) Strain honey, 3) Store and fill jars (straining can with optional airtight lid and stand).

Description:

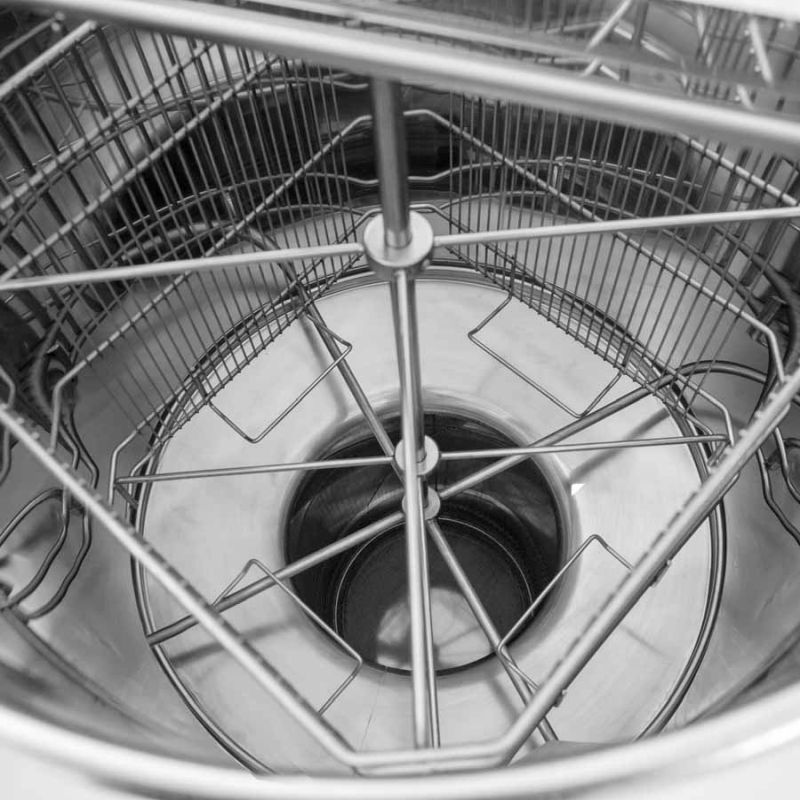

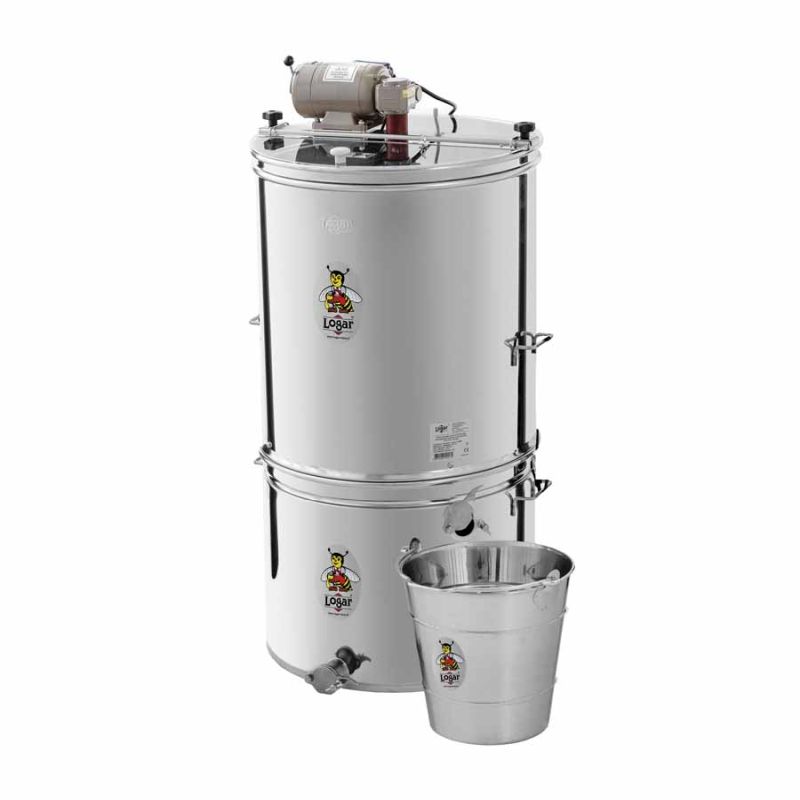

This 4-frame tangential extractor is equipped with a motor drive (110 W / 230 V) with an integrated safety switch that automatically stops the motor when the lid is opened. The extractor is designed without a bottom and sits directly on the straining can, secured with a clamping ring — this prevents tipping and increases stability during extraction. The extracted honey flows directly into the straining can beneath.

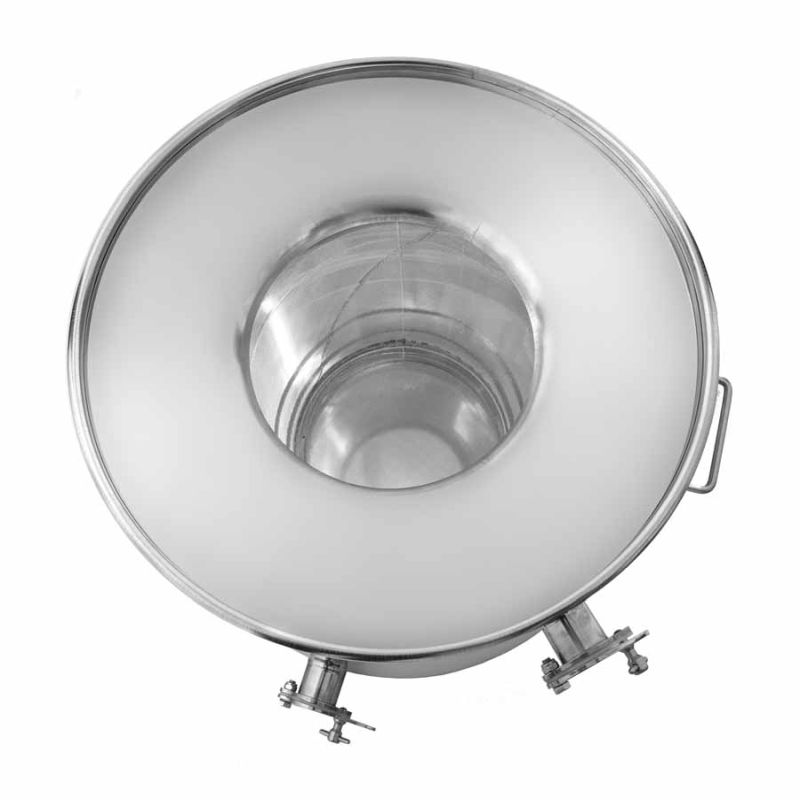

The straining can is specifically designed for straining during extraction. Two welded stainless steel pinch valves (upper + lower) allow continuous draining of strained honey and almost uninterrupted straining. The fine stainless-steel honey sieve (MESH 26, mesh size 0.71 mm) has a large capacity and a drip ring. Wax particles rise to the surface and can be easily skimmed off; the sieve does not clog even during all-day use. At the end, the can is emptied through the lower pinch valve.

The straining can can also be used to fill honey jars directly — the pinch valve cuts off the honey cleanly. For optimal emptying we recommend using a stand. An airtight lid is available as an accessory; the extractor's adjustable clamping ring can be used to seal it.

Cleaning and safety:
All honey-contact parts are made from food-grade materials. The lid is fitted with special hinges and is made of clear acrylic so the extraction process can be observed.

Warranty: 1 year.

Accessories:
- Lid with gasket Ø 52 cm (Art. 2440)
- Stand for container Ø 47 cm, stainless steel, disassembled (Art. 2477)
- 10 L stainless steel wax and honey bucket with handle (Art. 3772)
- Hanging pouch for cappings (Art. 7758)
- Voltage converter 12V DC → 230V AC, 300 W (Art. 4626)

Technical data:

• Drive: motor 110 W / 230 V with integrated safety switch
• Number of frames (standard / shallow): 4 / 8
• Maximum frame size: 30 x 48 cm
• Suitable for: Langstroth 1/1, Langstroth honey super, Dadant (brood and honey), DNM/EHM (including shallow), Zander (including shallow), Swiss hive (brood and honey), Austrian wide comb, Kuntzsch wide, Gerstung, ZaDant and many more.
• Sieve area (straining can): 30 x 41 cm
• Inner diameter of vat & straining can: 52 cm (outer 55 cm)
• Straining can capacity: approx. 100 kg
• Height of upper pinch valve: 28 cm
• Fine honey sieve: stainless steel mesh MESH 26, mesh size 0.71 mm
• Total height of extractor with straining can: 110 cm
• Extractor type: tangential extractor
• Made in EU (Slovenia)
• Type: LTM 4S
• Material: stainless steel W.Nr. 1.4301 / AISI 304
