Suitable for: Liquid, freshly extracted honey (ideal filling temperature 20–25°C). Very creamy honey with low water content can also be filled after warming to this temperature. The machine is also suitable for transferring and creaming honey and can be adapted for other products with different viscosities using modular components (pump head / hose / filling nozzle).
The machine fills liquid, freshly extracted honey at temperatures of 20–25°C. Very creamy honey with low water content must be warmed to this temperature to ensure a quick and smooth filling process. This filling machine allows precise and efficient dosing and is easy to clean.

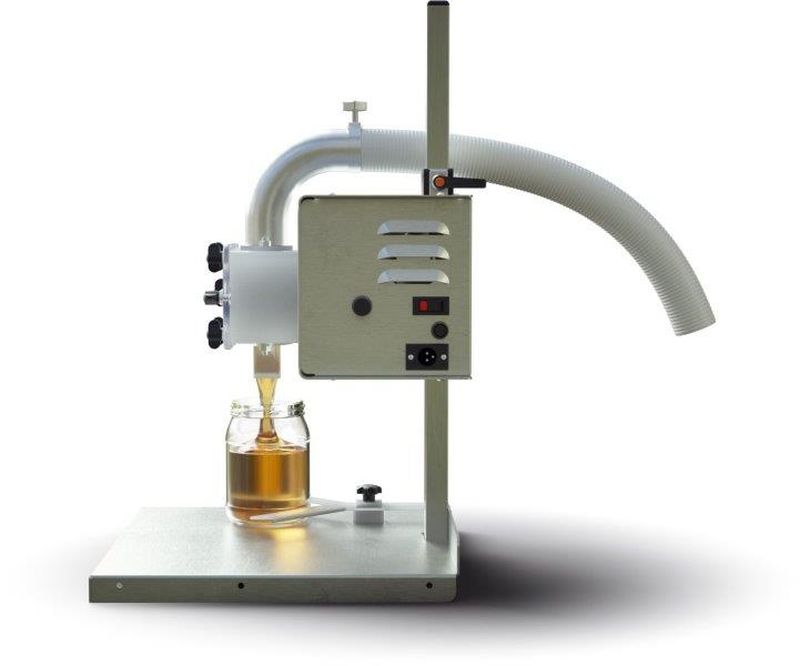

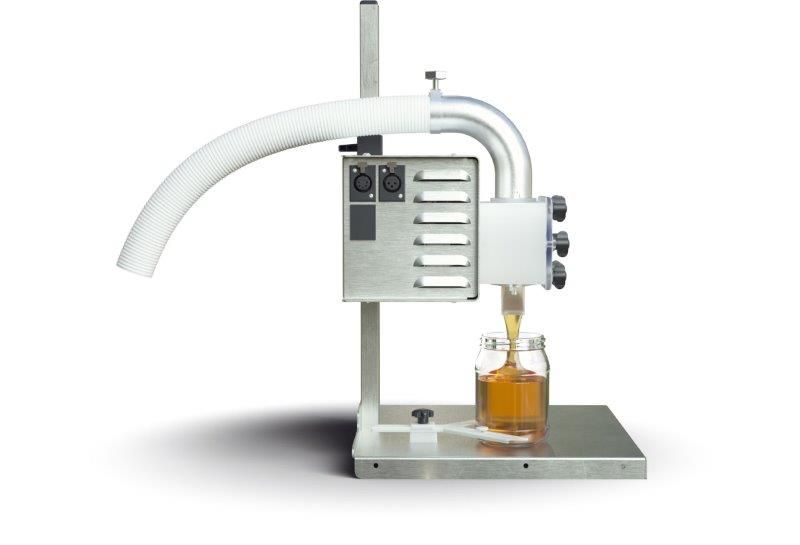

Honey is drawn from any sized honey container via the supplied hose and a check valve and is dispensed drip-free directly into the honey jar. Various supplied filling nozzles are available and should be selected according to the jar diameter and the honey's viscosity.
There is an option to expand the machine with a turntable: empty jars are placed on the turntable by hand. A sensor detects the container and stops the turntable while the container is filled. After the container has been filled with the preset amount, the turntable rotates until the sensor detects the next jar, stops, and the next container is filled. Filled jars collect in the centre of the turntable and can be removed by hand.
Using fully automatic turntables increases productivity, because one person can fill while also capping jars, applying labels and packaging.
Because the filling system is modular, the machine can be equipped at any time with other components (pump head / container / hose / filling nozzle) to fill additional products with different viscosities.
Additional application: recirculating for creaming honey
Our recommendation:
- Operating mode: "Pump" or "Timer"
- Seed the honey with creamed honey or wait for the onset of crystallisation
- Recirculate 3–8 times at intervals of 1 day each
Optional extras:
- Turntable Mini Ø 65 cm,
Art. 7503
- Turntable Auto M Ø 100 cm,
Art. 7314
- Expansion kit "Propolis" for filling propolis and mead
- Expansion kit "Royal" for filling royal jelly
Technical data
- Rated voltage: 24 V DC (power supply for 220 V included)
- Power consumption: 100 W
- Motor speed: 14–100 rpm
- Footprint (W x D): 320 x 350 mm
- Overall height: 500 mm
- Height under filling nozzle: 5–300 mm
- Weight: 16 kg
- Filling accuracy: max. 1–2% deviation
- Delivery heights: Maximum suction lift 1.5 m; maximum pumping head 4.0 m
- Maximum flow / capacity: 420 l/h or 600 kg/h
- Filling speed: approx. 400 containers of 500 g per hour
- Filling temperature: 15–40°C (optimal filling of liquid honeys at 20–25°C)
- Operating modes / additional functions: Pumping, timer, recirculating for creaming
- Note on modularity: System can be retrofitted with other pump heads, containers, hoses or filling nozzles for different viscosities
